MIDI Timecode Center Pro (MTC-30 Pro) is a multifunctional timecode center designed
by DOREMiDi. It can be used for timecode synchronization and conversion among computers,
MIDI devices, lighting control systems, audio equipment, video sync devices, and LTC
timecode devices.
MTC-30 Pro supports multiple timecode formats, including:
1. MIDI Timecode (MTC)
2. SMPTE LTC timecode
3. USB MIDI timecode
4. USB LTC audio timecode
5. RTP-MIDI network timecode
6. Art-Net timecode / ArtTimecode
7. SD/HD video frame sync
MTC-30 Pro supports timecode generation, reading, conversion, and distribution. It can
be controlled via the standard MMC (MIDI Machine Control) protocol, and can connect to
different systems via USB, 5-pin MIDI ports, LTC ports, Ethernet, and other interfaces.

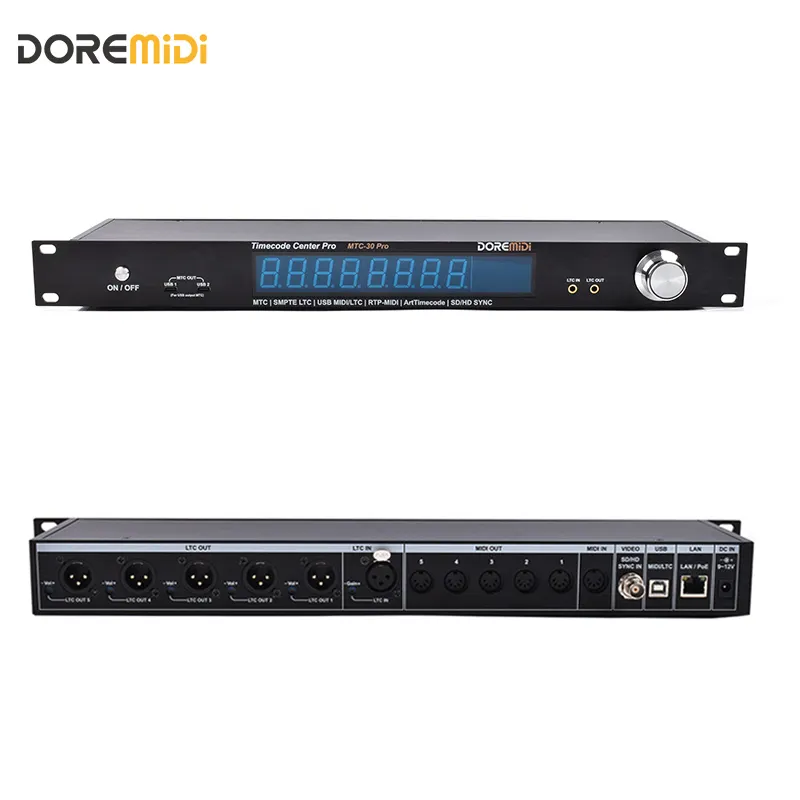

Compared with MTC-30, MTC-30 Pro provides more interfaces and stronger on-site
expansion capability, including multiple MIDI OUT ports, multiple LTC OUT ports, front-panel
3.5 mm LTC input/output ports, and two MTC OUT ports. It is suitable for stage performances,
lighting synchronization, audio production, video playback, timecode distribution, and similar
applications.
In addition, MTC-30 Pro features an Ethernet port with PoE capability, allowing the
product to be powered through a PoE gateway device. It uses an 8 x 0.8-inch numeric display
plus a 2.0-inch display, making it easy to view timecode and configure operating parameters.
